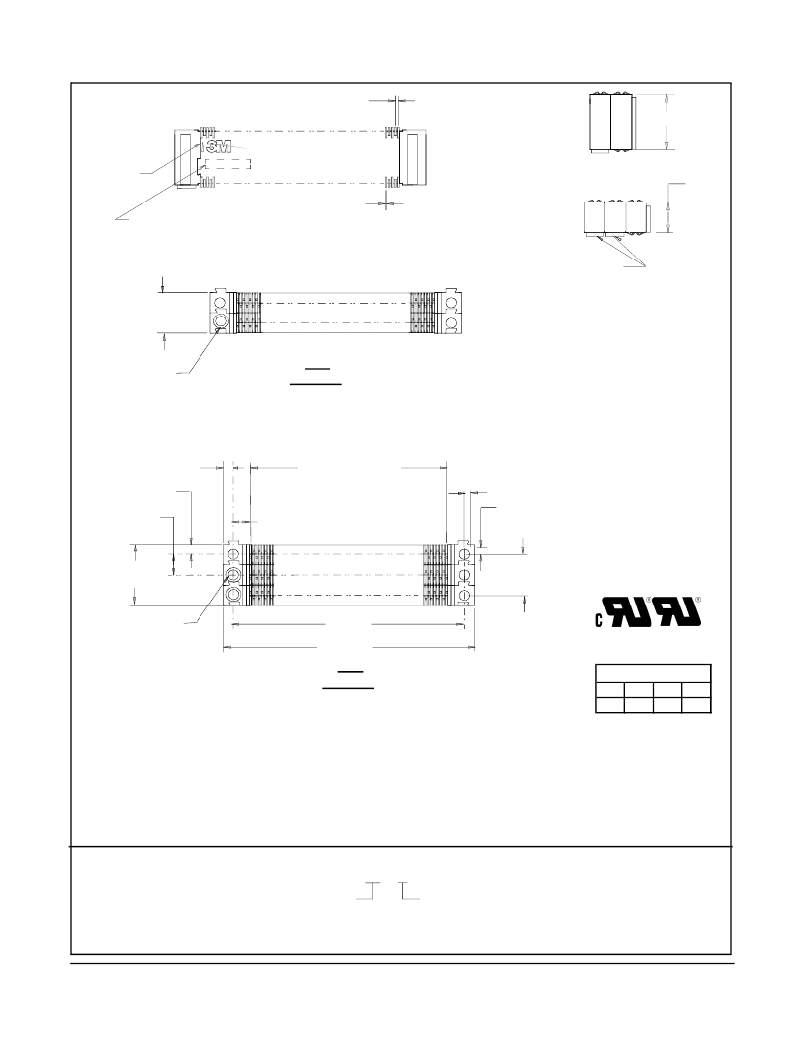

3M ? Stacking Compression Connector
.050", 100 or 150 Position
.050
389 Series
[ 1.27 ]
Two Row
Dim A
Number One
Contact
MFG. Ident., Part No. & date
.025 Typ
[ 0.64 ]
( 100 Position View )
Dim A
code to be located on the
surface
Polarizing Post Boss & Hole (2)
? .169 [ 4.29 ] × .049 [ 1.24 ] Lg.
? .109 [ 2.77 ] × .049 [ 1.24 ] Deep
.550
[ 13.97 ]
#2-56 × “Dim A” Lg.
Threaded Insert (4)
(See Note 1)
.13 [ 3.2 ]
.137 [ 3.47 ]
.275 [ 6.98 ]
.825
[ 20.96 ]
#2-56 × “Dim A” Lg.
Threaded Insert (6)
100
Position
49 Equal Spaces @.050
.150 [ 3.81 ]
2.75 Ref
[ 69.9 ]
.080 [ 2.03 ]
.100 [ 2.54 ]
.550
[ 13.97 ]
Three Row
( 150 Position View )
(See Note 2)
3.00 [ 76.2 ]
150
Position
In c h
[m m ]
T o le ra n c e U n le s s N o te d
.0 .0 0 .0 0 0
in c h
± .1
± .0 1 ± .0 0 5
[ ] D im e n s io n s fo r R e fe re n c e
O n ly
Notes:
1. The connector is supplied with one plastic stiffener and one spring steel stiffener (3448-75 for 100 position and -76 for 150 position).
2. Eight (for 100 pos) or 12 (for 150 pos) #2-56 x 5/16" long Philips flat head stainless screws are required for assembly (not included).
3. Spring steel stiffeners (3448-7X) are available separately.
Ordering Information
389X-00X0
3M
Interconnect Solutions
http://www.3M.com/interconnects/
Board spacing:
(Dimension A)
2 = .525 [ 13.34 ]
3 = .343 [ 8.71 ]
Contact Quantity:
0 = 100
5 = 150
TS-0798-08
Sheet 2 of 4
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
